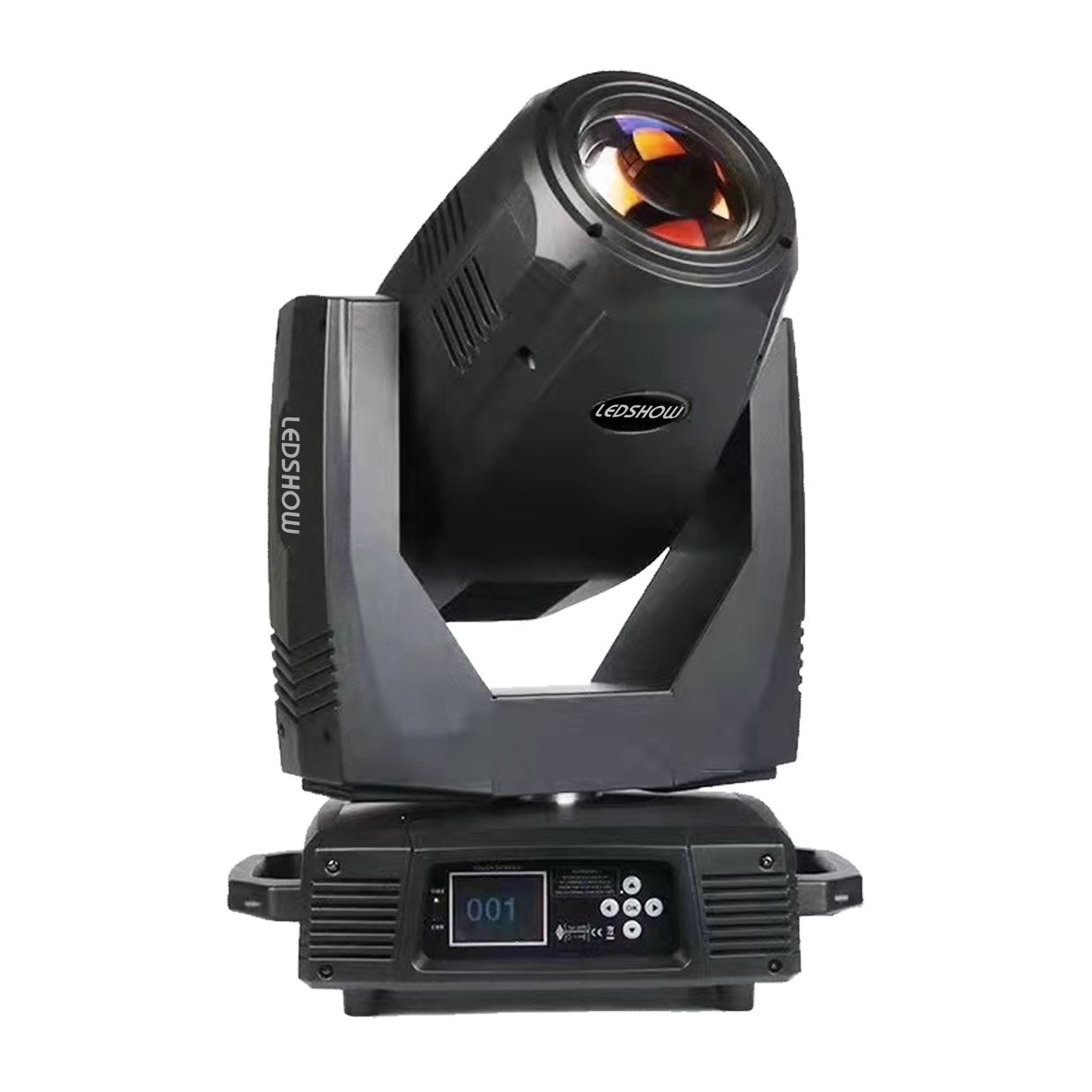

17R Hybrid Moving head 3in1 LP-350BSW

Voltage: AC90v-260v 50/60hz

Bulb power: 350W

Power consumption: 560W

Light source life: 1500H

Color temperature: 8000 k

Beam Angle: 2°

Signal control: DMX512

Control channel: 24CH

Scanning Angle: Pan movement 540 °, 16 bit

                                  Tilt movement 270 °, 16bit

Color wheel: 8 color plates; 600K/3200K (optional)

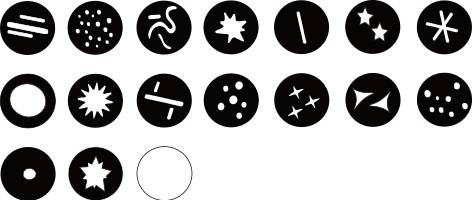

Gobo wheel: static gobo wheel, 17 + white

Prism: 8+16 multi-layer prism (optional 24/48), bidirectional rotation

Dimming: 0~100% linear dimming

Zoom: 3 sets of optical lens, quick linear

Strobe: 0.5 ~ 9 hz/s

Frost: 0~100% linear

Work temperature: -20℃~45℃, good ventilation

IP rated: IP20

Size: 390x330x720mm

N.W.: 29kg

•

  Product Specs

•

  Product Manual

•

  DMX Channels

•

  Photometrics

•

  CAD Symbols

•

  Accessories (Packaging and battery removal)

•

  Gobos And Filters

•

  Library Download

Color plate

Pattern plate
