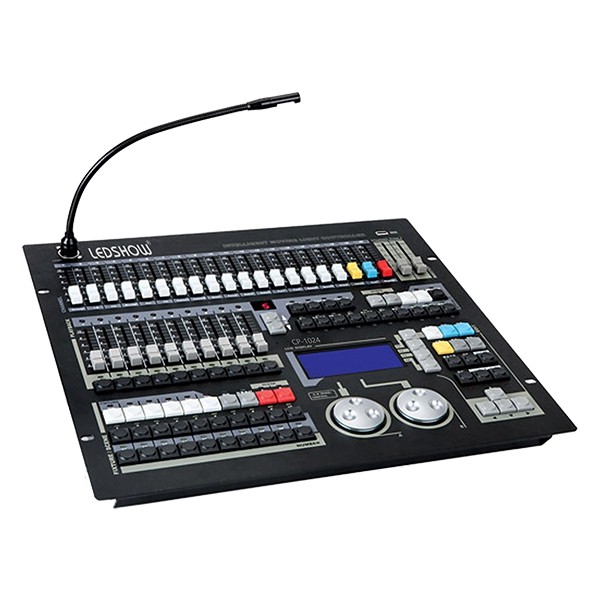

1024ch DMX Moving Light Controller CP-1024

CP-1024

· Maximum 1024 DMX control channels,  DMX512/1990 standard, optoelectronic  isolation signal output port.

· Maximum control of 120 computer lights or  120 dimming and LED lamps.

· Maximum 42 control channels per lamp,  using lamp library mode. (the R20 lamp library)

· With attribute channel push rod, convenient for users to  control the lamp.

· Stores up to 300 replays in 30 pages.

· With 40 directly selected scenes, can be overlaid output at  the same time, can cooperate with the replay for the scene  effects, can point control and latch.

· With built-in graphics, convenient for users to  control the effect of the computer lamp, picture circle,  wave, aperture, Variation of brightness and other effects,  support graphics · overlay, deformation and expansion effects.

· Program synchronization control: optional internal speed,  external speed, music synchronization control.

· Large LCD display, using Chinese/English  menu operation mode.

· With USB data interface, support U disk data backup  and system upgrade.

· Professional gooseneck working light (optional).

· Power supply: AC100-240V 50/60HZ 15W,  high performance green switching power supply, in line  with the power requirements of all countries in the world.

· Dimensions: 482 x 440 x 108 mm

•
