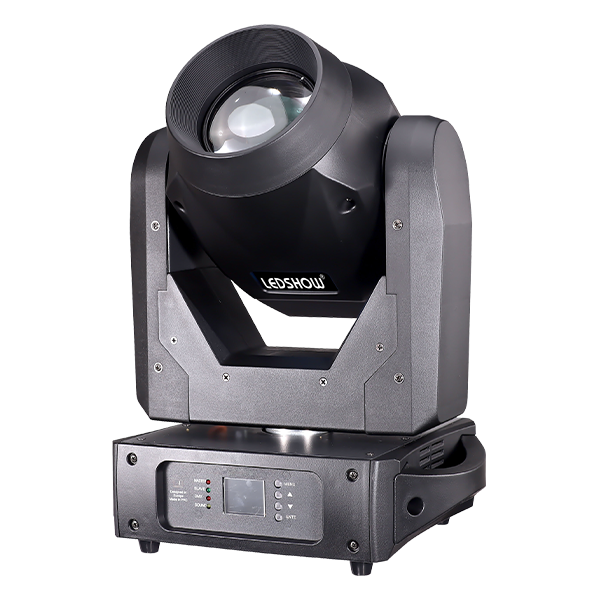

230W Hybrid LED Moving head LP-L230BSW

Voltage: AC100-240V 50/60HZ

Light source: 150W

Power consumption: 230W

Light source life: 50000H

Beam Angle: 2°/4°/6°/8°/10°

Signal control: DMX512

Control channel: 17CH、20CH

Scanning Angle: Horizontal scanning Angle 540 °, resolution 16bit, can be electric correction and positioning Vertical scanning Angle of 270 °, resolution of 16bit, can be electric correction positioning

Color wheel: 8 fixed colors + white, two way rainbow effect

Gobo wheel: 1 fixed pattern plate, 7 kinds of patterns and white circles 1 rotating pattern plate, 6 patterns plus white circle

Focus: 3 sets of optical lens combination, linear quick adjustment

Dimming: 0~100% linear adjustment

Strobe: 0 ~ 25 hz/s

Ambient temperature: -10℃~40℃, good ventilation

Protection level: IP20

Size: 452x290x256mm

Weight: 12kg

•
